Connecting Parts

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End ( C )
Material
Surface Treatment

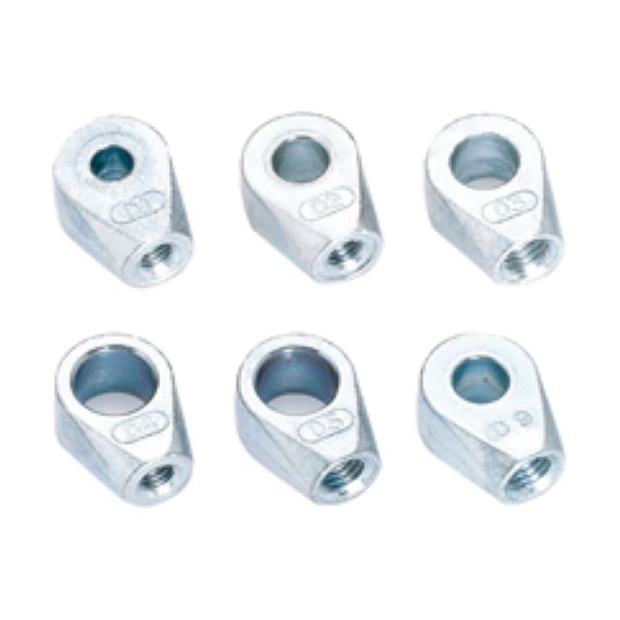

D1　ZINC
6
M6X1.0
16
Zinc Alloy
White Zinc Plated


D2    ZINC
8


D3    ZINC
10
M8X1.25


D3A  ZINC
10
M6X1.0


D4　 ZINC
12


D5　 ZINC
12
M8X1.25


D9　 ZINC
8






Unit : mm













Model No.
Hole Dia ( ∅A )
Thread ( B )
Material
Surface Treatment

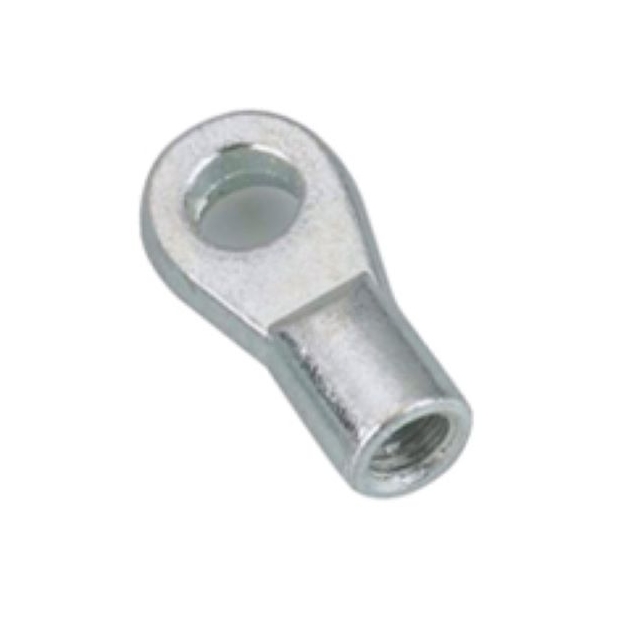

D6　ZINC
6.1
M6X1.0
Zinc Alloy
White Zinc Plated


D6A    ZINC
8.1

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End ( C )
Material
Surface Treatment

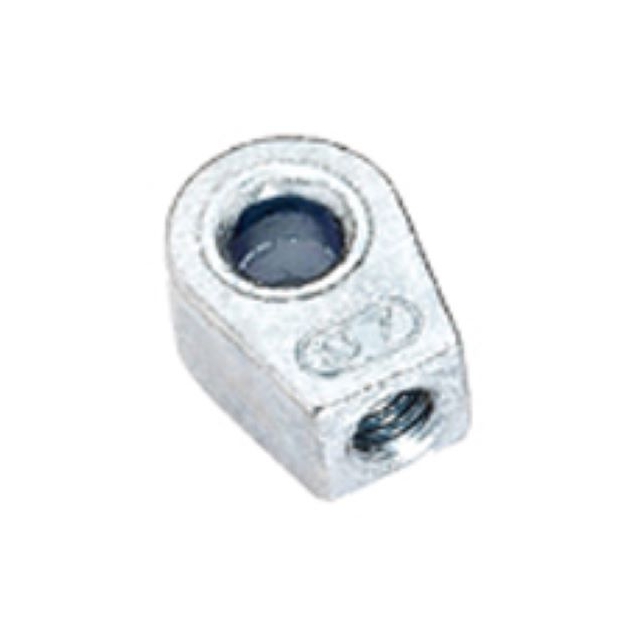

D7
6
M6X1.0
13
Zinc Alloy
White Zinc Plated


D7A
8


D7B
10

Unit : mm













Model No.
Hole Dia ( ∅A )
Thread ( B )
Material
Surface Treatment

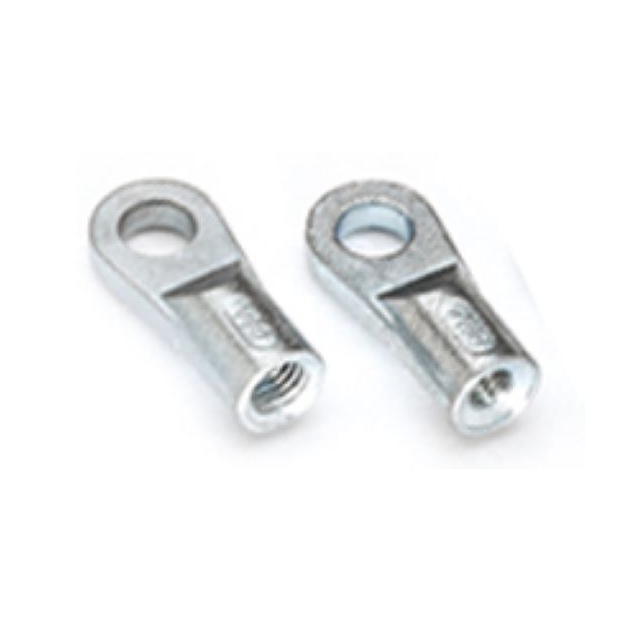

D8A
8.1
M8X1.25
Zinc Alloy
White Zinc Plated


D8A2
8.1
M6X1.0


D8A3
6.1


D8A4
8.1
M8X1.0


D8A5
10.1
M8X1.25


D8A6
10.1
M6X1.0


D8A7
9.1


D8A8
9.1
M8X1.25

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End ( C )
Material
Surface Treatment

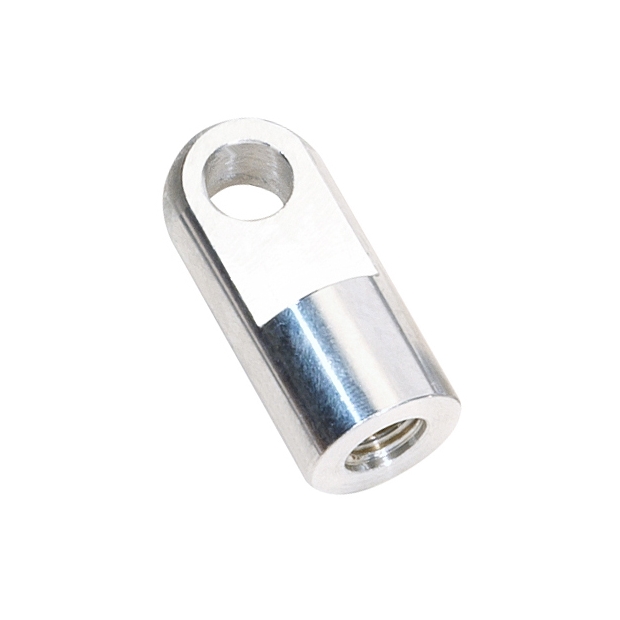

NL01
8
M6X1.0
24
ALUMINUM
Vibratory Grinding


NL05
M8X1.25

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End ( C )
Material
Surface Treatment


NL06
8
M8X1.25
28
ALUMINUM
Vibratory Grinding


NL07
10






Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
C
D
E
L1
L2
L3
Material
Surface Treatment

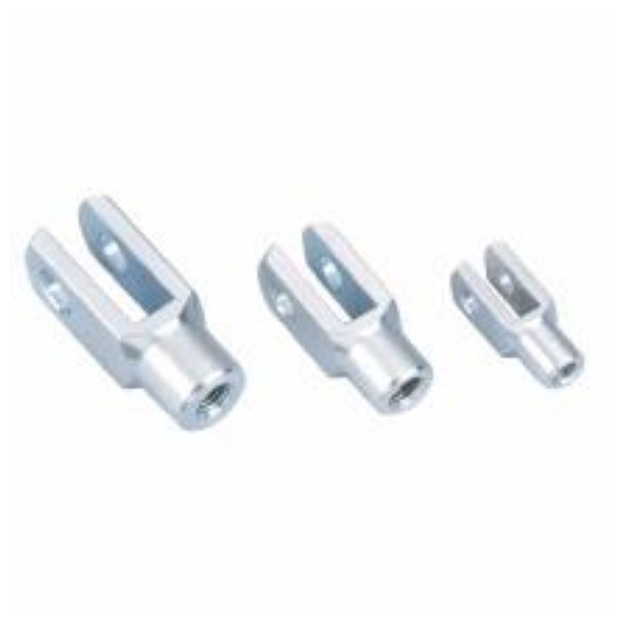

U3   FORK ZINC
5
M5X0.8
9
5
10
26
20
10
12L14
White Zinc Plated


U5   FORK ZINC
6
M6X1.0
10
6
12
32
25
12


U6   FORK ZINC
8
M8X1.25
14
8
16
42
32
16


U7   FORK ZINC
10
M8X1.25
17
10
19
52
40
20.5


U8   FORK ZINC
14
M14X1.5
24
14
27
72
56
28

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End ( C )
Material
Surface Treatment

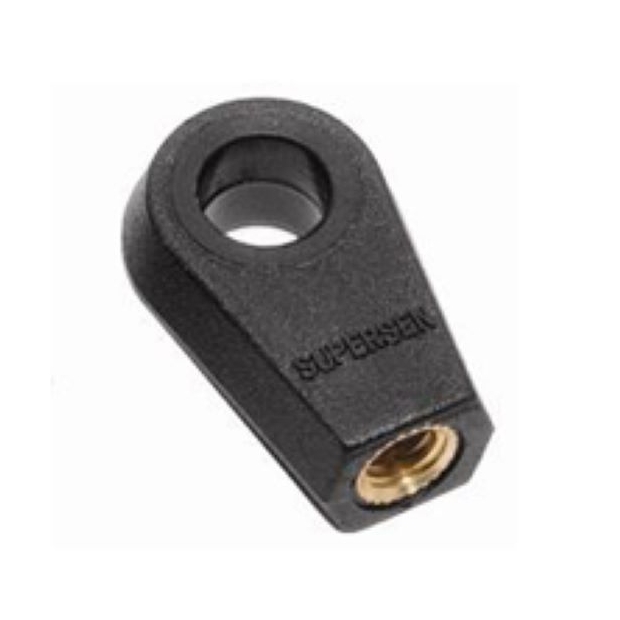

SS1 BLACK
8
M6X1.0
20
NYLON
Black Plastic

Unit : mm
















Model No.
Hole Dia  ( ∅A )
Thread  ( B )
Hole Center To End  ( C )
Material
Surface Treatment

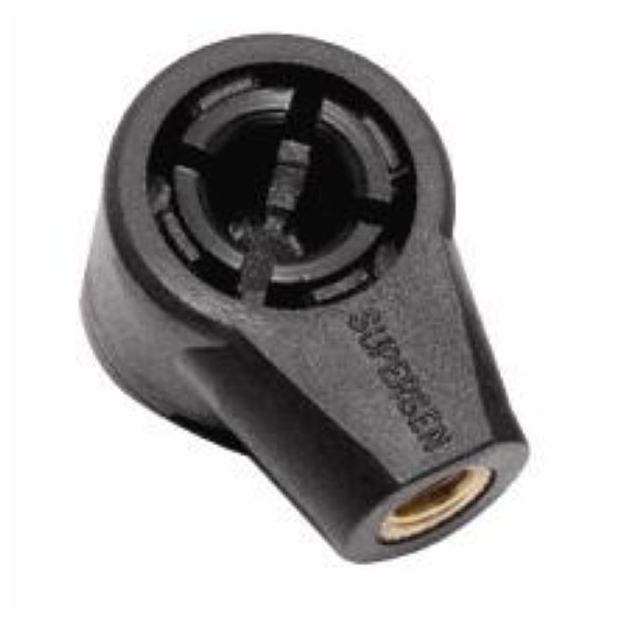

SS2 BLACK
10
M6X1.0
20
NYLON
Black Plastic


SS2 GRAY
Gray Plastic

Unit : mm















Model No.
Hole Dia  ( ∅A )
Thread  ( B )
Hole Center To End  ( C )
Material
Surface Treatment

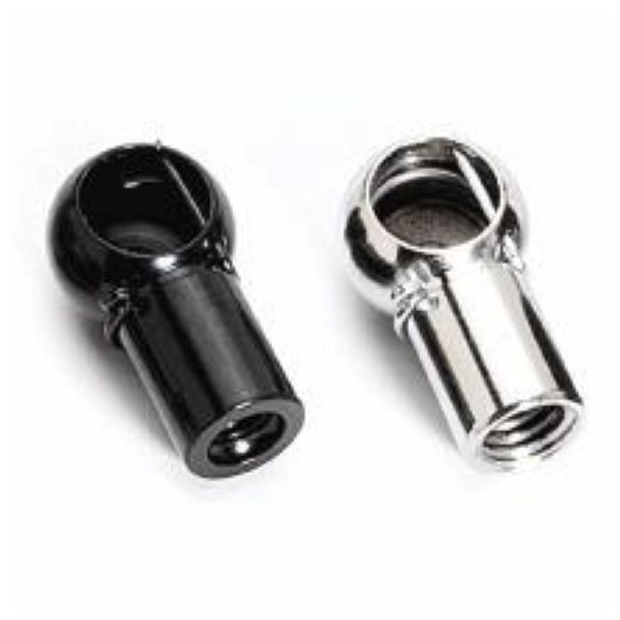

C918M6 BLACK ZINC
10
M6X1.0
18
12L14
BLACK ZINC


C920M6 BLACK ZINC
20


C922M6 BLACK ZINC
22.5


C925M6 BLACK ZINC
25


C930M6 BLACK ZINC
30


C9S18M6 SUS303
18
SUS303
Vibratory Gninding


C9S20M6 SUS303
20


C9S22M6 SUS303
22.5


C9S25M6 SUS303
25


C9S30M6 SUS303
30


C918M8 BLACK ZINC
M8X1.25
18
12L14
BLACK ZINC


C920M8 BLACK ZINC
20


C922M8 BLACK ZINC
22.5


C925M8 BLACK ZINC
25


C930M8 BLACK ZINC
30


C9S18M8 SUS303
18
SUS303
Vibratory Gninding


C9S20M8 SUS303
20


C9S22M8 SUS303
22.5


C9S25M8 SUS303
25


C9S30M8 SUS303
30

Unit : mm















Model No.
Hole Dia  ( ∅A )
Thread  ( B )
Hole Center To End  ( C )
Material
Surface Treatment

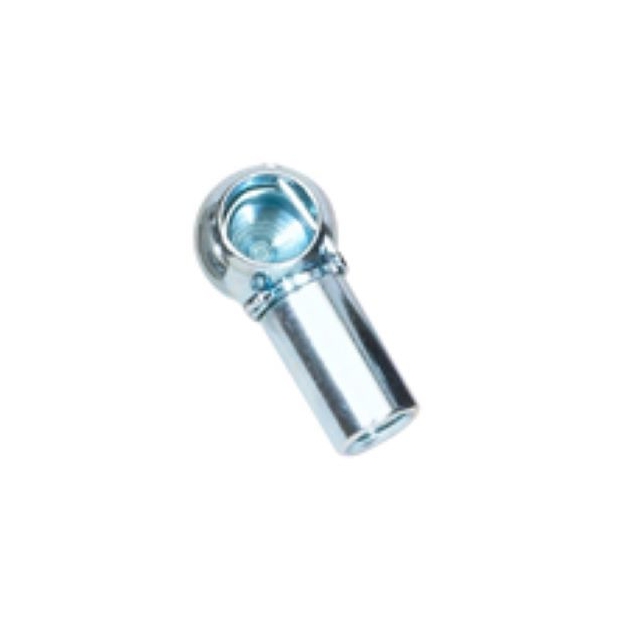

C1315M4 ZINC
8
M4X0.7
15
12L14
White Zinc Plated


C1318M4 ZINC
18


C1320M4 ZINC
20


C13S15M4 SUS303
15
SUS303
Vibratory Grinding


C13S18M4 SUS303
18


C13S20M4 SUS303
20


C1315M5 ZINC
M5X0.8
15
12L14
White Zinc Plated


C1318M5 ZINC
18


C1320M5 ZINC
20


C13S15M5 SUS303
15
SUS303
Vibratory Grinding


C13S18M5 SUS303
18


C13S20M5 SUS303
20


C1315M6 ZINC
M6X1.0
15
12L14
White Zinc Plated


C1318M6 ZINC
18


C1320M6 ZINC
20


C13S15M6 SUS303
15
SUS303
Vibratory Grinding


C13S18M6 SUS303
18


C13S20M6 SUS303
20

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
 Hole Center To End ( C )
Material
Surface Treatment

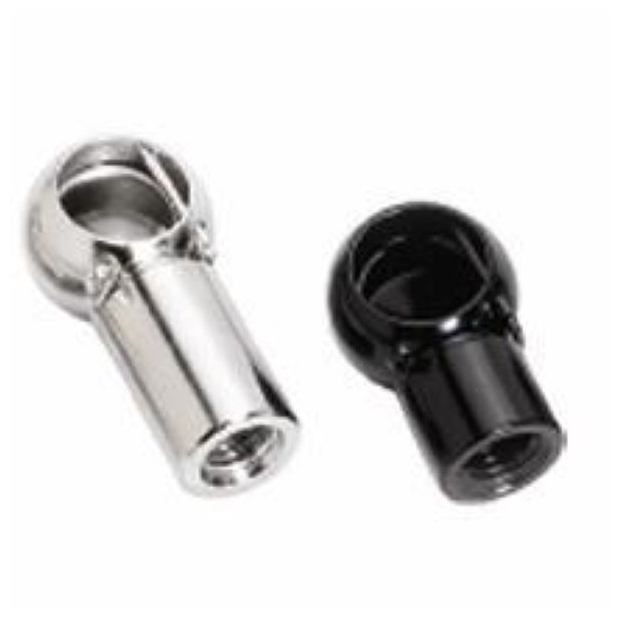

C1920M8 Black Zinc
13
M8X1.25
20
12L14
Black Zinc


C1925M8 Black Zinc
25


C1930M8 Black Zinc
30


C1935M8 Black Zinc
35


C19S20M8 SUS303
20
SUS303
Vibratory Grinding


C19S25M8 SUS303
25


C19S30M8 SUS303
30
