BLOC-O-LIFT

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS















Model No.
Stroke (A)
Extended Length (B)
FZ(N)
FD(N)
F1 (N)


BOLT-956-M10D9-150N
400
956
480
860
150N


BOLT-1056-M10D9-150N
450
1056
480
860
150N





STABILUS BLOC-O-LIFT Gas spring (BOL-T).

BLOC-O-LIFT-T-easy adjustment of table heights. The spring characteristic curve of the BLOC-O-LIFT- T is very flat, which ensures essentially uniform force assistance through the entire stroke. This enables the table surface to be moved very easily no matter its weight without causing the table to lose its stability or load-bearing capacity.

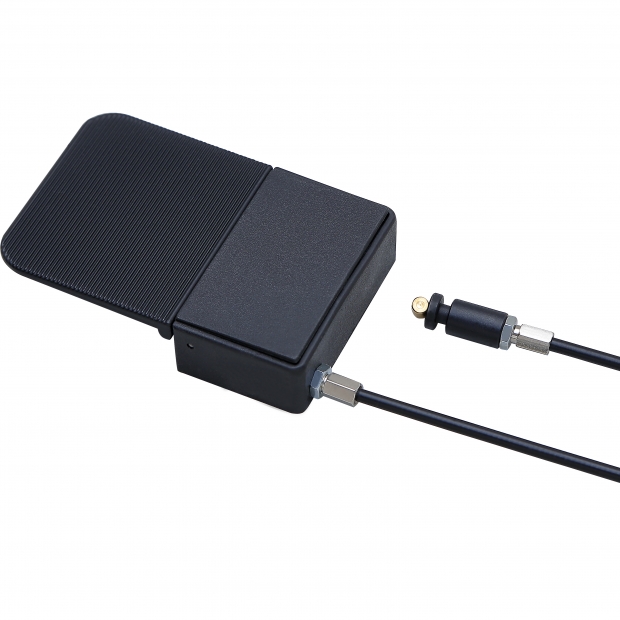

This spring can be installed in any orientation. The lock can be released via hand lever or foot lever based on specification to adjust the table height easily and comfortably.

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS











Model No.
Stroke (A)
Extended Length (B)
Force Range (N)


BOLOBT-316-M8D9-XXXN
100
316
100~400N


BOLOBT-416-M8D9-XXXN
150
416
100~400N


BOLOBT-516-M8D9-XXXN
200
516
100~400N


BOLOBT-616-M8D9-XXXN
250
616
100~400N


BOLOBT-716-M8D9-XXXN
300
716
100~400N


BOLOBT-816-M8D9-XXXN
350
816
100~400N


BOLOBT-916-M8D9-XXXN
400
916
100~400N

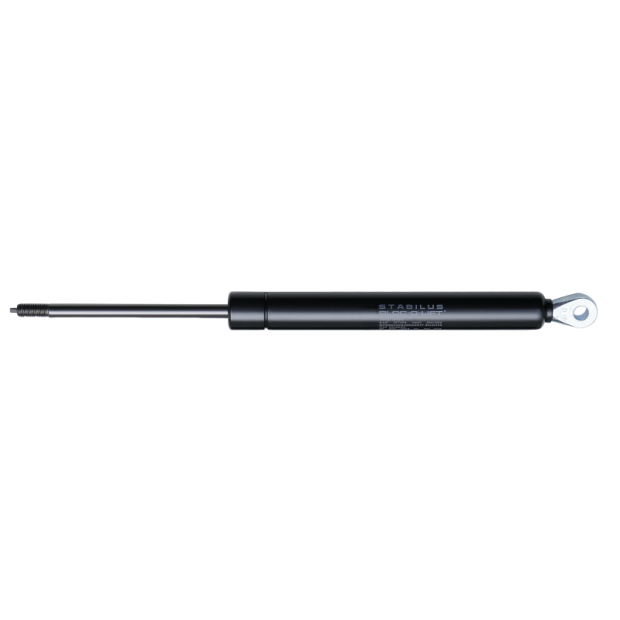

STABILUS BLOC-O-LIFT Gas spring (OBT).

BLOC-O-LIFT OBT Gas Spring can be easily blocked in any position for convenient upward motion of applications, such as tabletops, without the need to actuate a release. Just push slightly to lift or adjust tables in any emergency. Release is actuated when lowing the tables. Preferably it is installed vertically.

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS











Model No.
Stroke (A)
Extended Length (B)
Force Range (N)


BOL-184-M10D3-XXXN
30
184
200~1200N


BOL-203-M10D3-XXXN
40
203
200~1200N


BOL-244-M10D3-XXXN
60
244
200~1200N


BOL-285-M10D3-XXXN
80
285
200~1200N


BOL-326-M10D3-XXXN
100
326
200~1200N


BOL-364-M10D3-XXXN
120
364
200~1200N


BOL-446-M10D3-XXXN
160
446
200~1200N


BOL-525-M10D3-XXXN
200
525
200~1200N


BOL-626-M10D3-XXXN
250
626
200~1200N


BOL-726-M10D3-XXXN
300
726
200~1200N


BOL-826-M10D3-XXXN
350
826
200~1200N


BOL-926-M10D3-XXXN
400
926
200~1200N

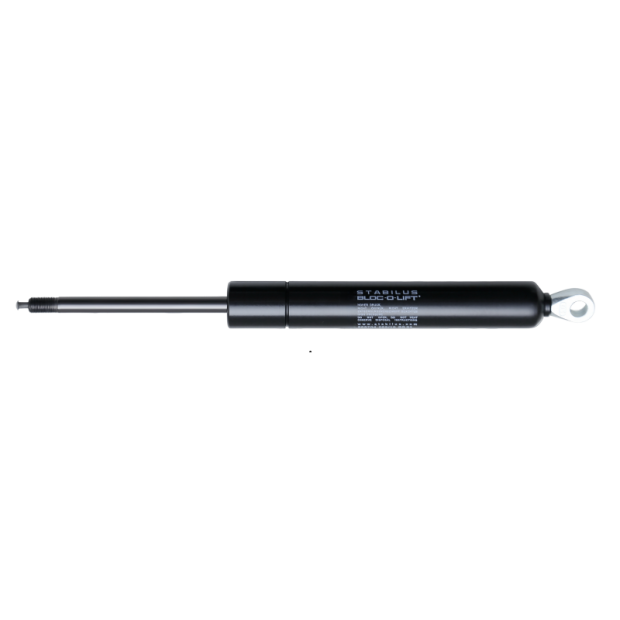

STABILUS BLOC-O-LIFT Gas spring (BOL).
BLOC-O-LIFT Gas spring (BOL) can be blocked to extent applications and stepless locked.

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS















Model No.
Stroke (A)
Extended Length (B)
Force Range (N)
Stretch Locking Force
Compression Locking Force


BOLR-264-M10D3-350N
45
264
350N
  9500N
1500N


BOLR-356-M10D3-150N
100
356
150N
10500N
  600N


BOLR-571-M10D3-350N
180
571
350N
  9000N
1500N


BOLR-589-M10D3-150N
178
589
150N
11000N
  600N


BOLR-702-M10D3-150N
200
702
150N
11500N
  600N




STABILUS BLOC-O-LIFT Gas spring (BOL-R).
BLOC-O-LIFT Gas spring (BOL-R) can be blocked to extent applications and stepless locked.

Unit : mm









Model No.
Length
Connecting Parts


STDE-ACC-BOL-079354
500
STDE-ACC-BOL-075291
STDE-ACC-BOL-006837


 STDE-ACC-BOL-081505
750


 STDE-ACC-BOL-082700
1000


 STDE-ACC-BOL-069316
500
STDE-ACC-BOL-074574
STDE-ACC-BOL-112485


 STDE-ACC-BOL-072901
750


 STDE-ACC-BOL-074813
1000






Unit : mm









Model No.
Length
Connecting Parts


STDE-ACC-BOL-079354
500
STDE-ACC-BOL-075291
STDE-ACC-BOL-006837


 STDE-ACC-BOL-081505
750


 STDE-ACC-BOL-082700
1000


 STDE-ACC-BOL-069316
500
STDE-ACC-BOL-074574
STDE-ACC-BOL-112485


 STDE-ACC-BOL-072901
750


 STDE-ACC-BOL-074813
1000

Unit : mm









Model No.
Length
Connecting Parts


STDE-ACC-BOL-088197
500
STDE-ACC-BOL-075291
STDE-ACC-BOL-006837


 STDE-ACC-BOL-088675
750


 STDE-ACC-BOL-104927
1000


 STDE-ACC-BOL-068838
500
STDE-ACC-BOL-074574
STDE-ACC-BOL-112485


 STDE-ACC-BOL-088436
750


 STDE-ACC-BOL-105166
1000

Unit : mm







Model No.
Length


STDE-ACC-BOL-878189
300


 STDE-ACC-BOL-0346BC
500


 STDE-ACC-BOL-0305BE
1000




Germany STABILUS Position Oriented Gas Spring Brackets.

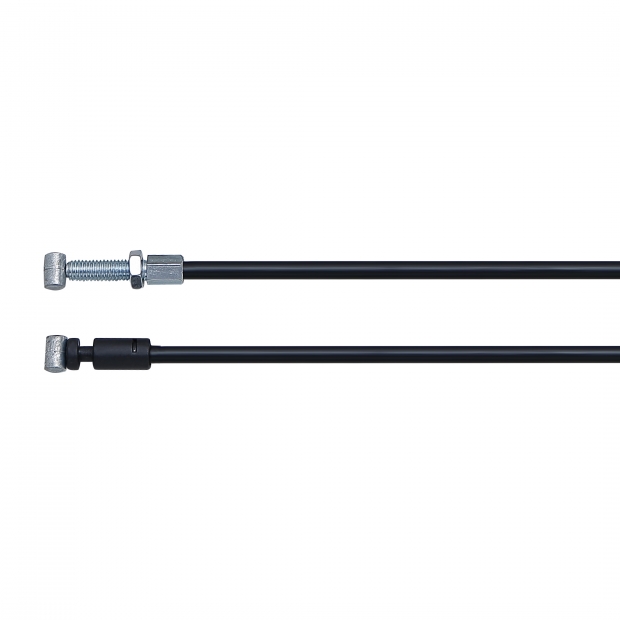

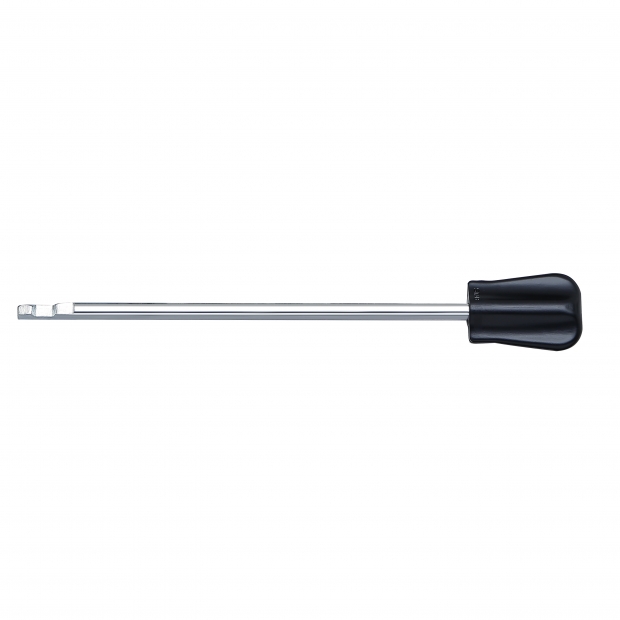

Stabilus BLOC-O-LIFT gas spring connected with release unit to actuate a release.

Unit : mm





Model No.


STDE-ACC-BOL-1044BZ




Germany STABILUS Position Oriented Gas Spring Brackets.

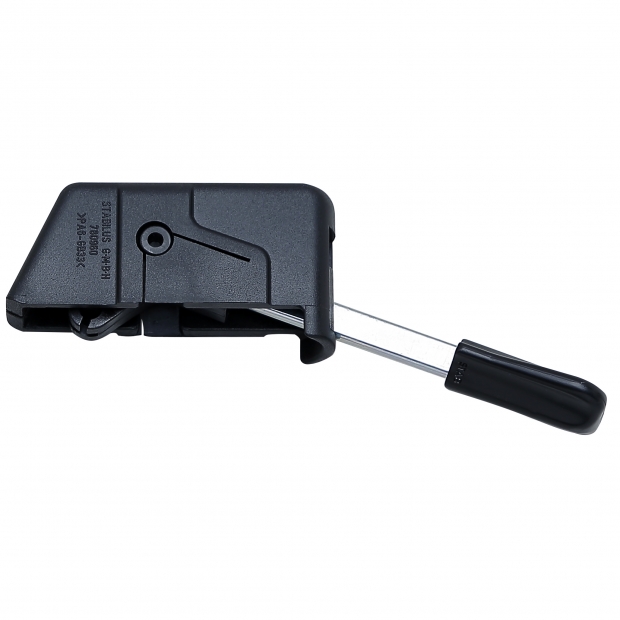

Stabilus BLOC-O-LIFT gas spring connected with release head configurations to actuate a release.

Unit : mm









Model No.
Bottom to Center (A)
Material


STDE-ACC-BOL-992259
64
Steel


STDE-ACC-BOL-1041BN
104
Steel


STDE-ACC-BOL-132543
122
Steel


STDE-ACC-BOL-065056
167
Steel


STDE-ACC-BOL-125466
196
Steel




Germany STABILUS Position Oriented Gas Spring Brackets.

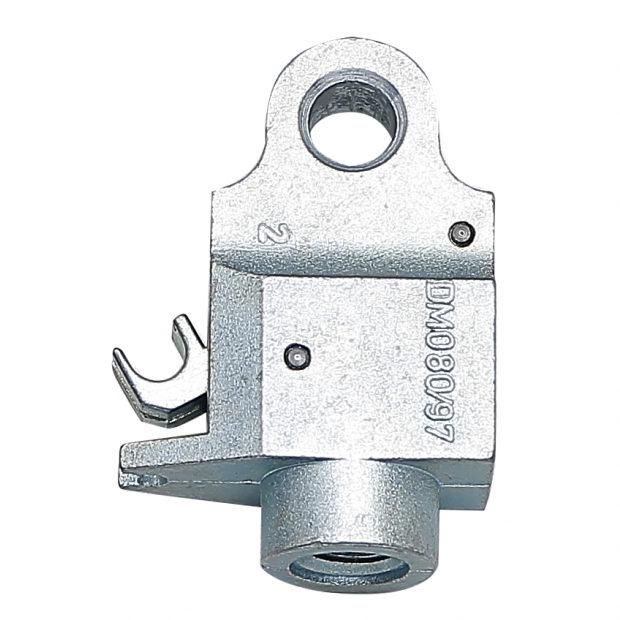

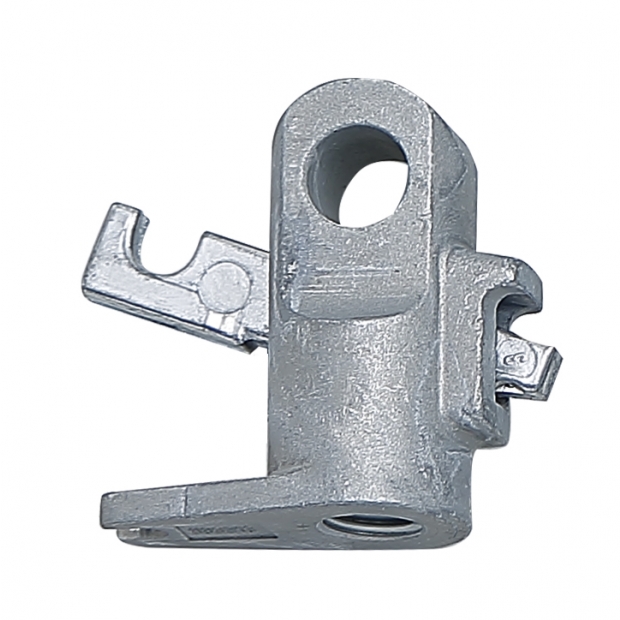

Stabilus BLOC-O-LIFT gas spring connected with accessories release systems to actuate a release.

Unit : mm













Model No.
Hole Center To End
Thread
Hole Dia.
Material


STDE-ACC-BOL-012820
27
M8X1.0
Ø8
Alloy Die Casting


STDE-ACC-BOL-007409
27
M10X1.0
Ø8
Alloy Die Casting

Unit : mm













Model No.
Hole Center To End
Thread
Hole Dia.
 Material


STDE-ACC-BOL-074574
41
M8X1.0
Ø8
Alloy Die Casting


STDE-ACC-BOL-112485
41
M10X1.0
Ø8
Alloy Die Casting
