Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) |
| BOL-184-M10D3-XXXN | 30 | 184 | 200~1200N |
| BOL-203-M10D3-XXXN | 40 | 203 | 200~1200N |
| BOL-244-M10D3-XXXN | 60 | 244 | 200~1200N |
| BOL-285-M10D3-XXXN | 80 | 285 | 200~1200N |
| BOL-326-M10D3-XXXN | 100 | 326 | 200~1200N |
| BOL-364-M10D3-XXXN | 120 | 364 | 200~1200N |
| BOL-446-M10D3-XXXN | 160 | 446 | 200~1200N |
| BOL-525-M10D3-XXXN | 200 | 525 | 200~1200N |
| BOL-626-M10D3-XXXN | 250 | 626 | 200~1200N |
| BOL-726-M10D3-XXXN | 300 | 726 | 200~1200N |
| BOL-826-M10D3-XXXN | 350 | 826 | 200~1200N |
| BOL-926-M10D3-XXXN | 400 | 926 | 200~1200N |

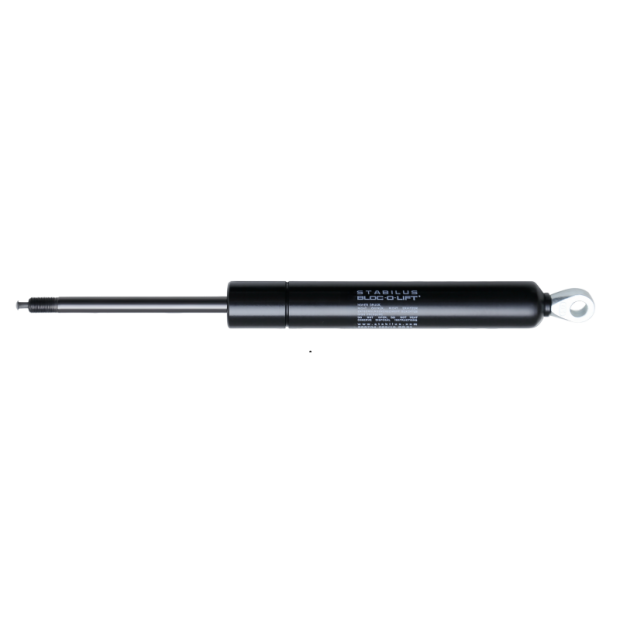

STABILUS BLOC-O-LIFT Gas spring (BOL).
BLOC-O-LIFT Gas spring (BOL) can be blocked to extent applications and stepless locked.
