  1. Connecting Parts
one two four
  • Read More

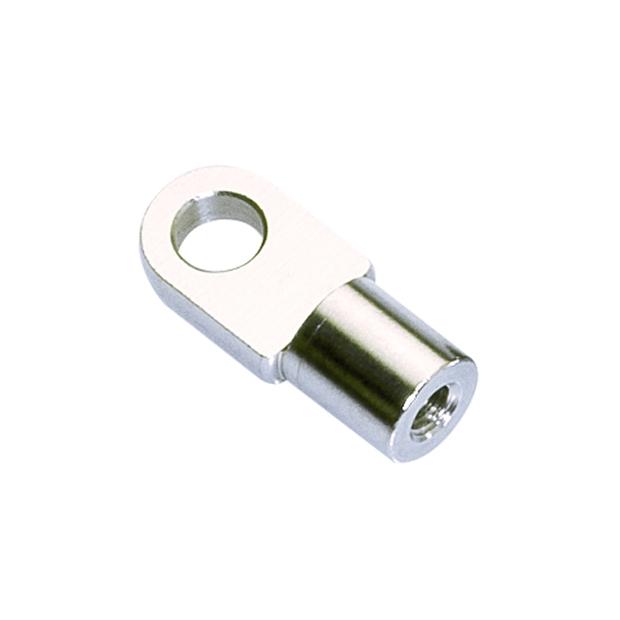

    A15S

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End  ( C )
    Material
    Surface Treatment


    A15S08M6 SUS303
    8
    M6X1.0
    27.5
    SUS303
    Vibratory Gninding


    A15S10M6 SUS303
    10


    A15S08M8 SUS303
    8
    M8X1.25


    A15S10M8 SUS303
    10
  • Read More

    A7

    Unit : mm















    Model No.
    Hole Dia  ( ∅A )
    Thread  ( B )
    Hole Center To End  ( C )
    Material
    Surface Treatment


    A7 BLACK ZINC
    8
    M6X1.0
    20
    12L14
    BLACK ZINC


    A706 BLACK  ZINC
    6
    1215
    BLACK ZINC
  • Read More

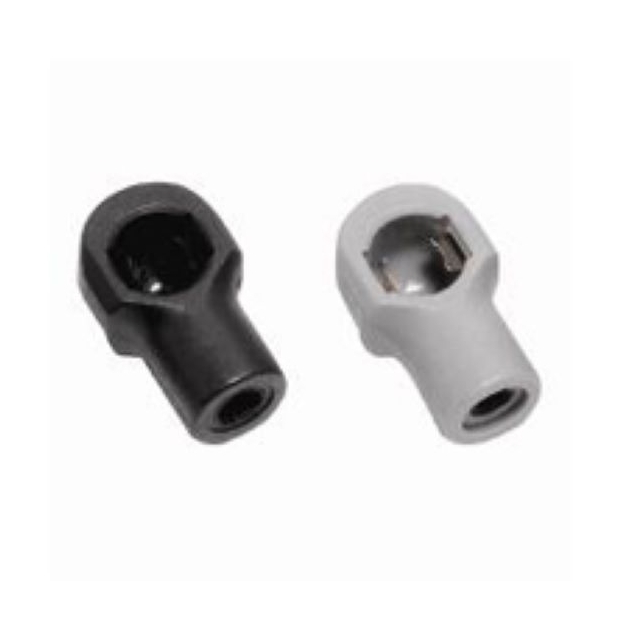

    B6(Hole Dia. 10mm)

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    B6 BLACK
    10
    M6X1.0
    18
    NYLON
    Black Plastic


    B6 GRAY
    Gray Plastic
  • Read More

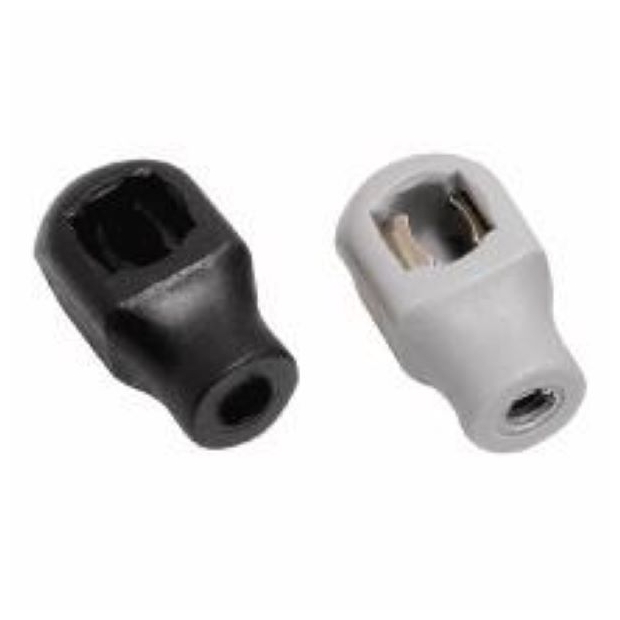

    B10(Hole Dia. 10mm)

    Unit : mm















    Model No.
    Hole Dia  ( ∅A )
    Thread  ( B )
    Hole Center To End  ( C )
    Material
    Surface Treatment


    B10 BLACK
    10
    M6X1.0
    20
    NYLON
    Black Plastic


    B10 GRAY
    Gray Plastic


    B10A BLACK
    M8X1.25
    Black Plastic


    B10A GRAY
    Gray Plastic
  • Read More

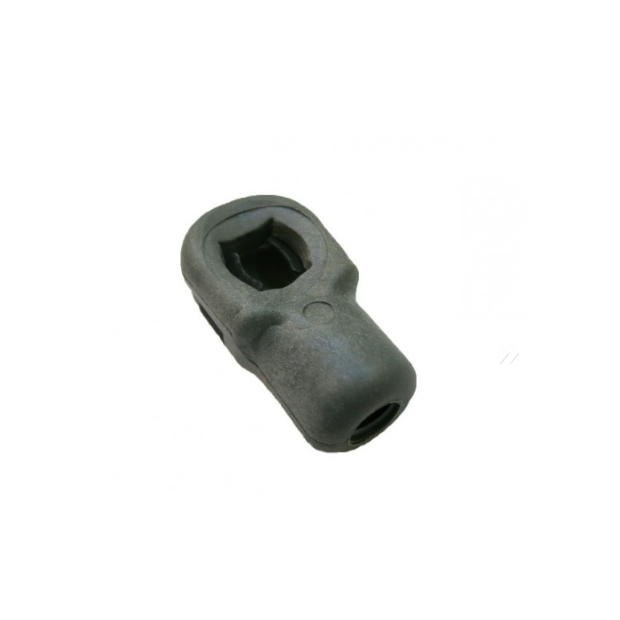

    B10-25M8(Hole Dia. 10mm)

    Unit : mm















    Model No.
    Hole Dia  ( ∅A )
    Thread  ( B )
    Hole Center To End  ( C )
    Material
    Surface Treatment


    B1025M8 GRAY
    10
    M8X1.25
    25
    NYLON
    Gray Plastic
  • Read More

    B218(Hole Dia. 10mm))

    Unit : mm















    Model No.
    Hole Dia  ( ∅A )
    Thread  ( B )
    Hole Center To End  ( C )
    Material
    Surface Treatment


    B218-M6 BLACK
    10
    M6X1.0
    18
    NYLON
    Black Plastic


    B218-M8 BLACK
    M8X1.25
  • Read More

    L1

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L1
    6
    M6X1.0
    18
    ALUMINUM
    Vibratory Grinding


    L1S SUS303
    SUS303
  • Read More

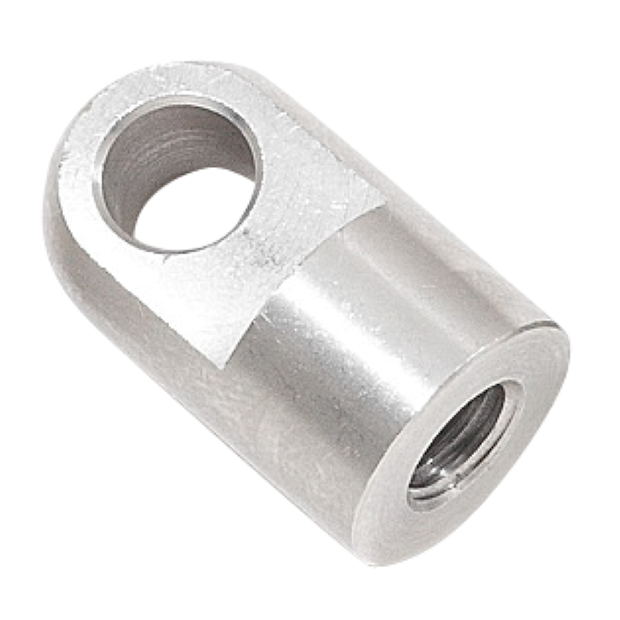

    L2

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L2
    8
    M8X1.25
    20
    ALUMINUM
    Vibratory Grinding


    L2S SUS303
    SUS303
  • Read More

    L3

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L3
    8
    M8X1.25
    20
    ALUMINUM
    Vibratory Grinding


    L325M6
    M6X1.0
    25


    L327M6
    27.5


    L325M8
    M8X1.25
    25


    L327M8
    27.5


    L330M8
    30





  • Read More

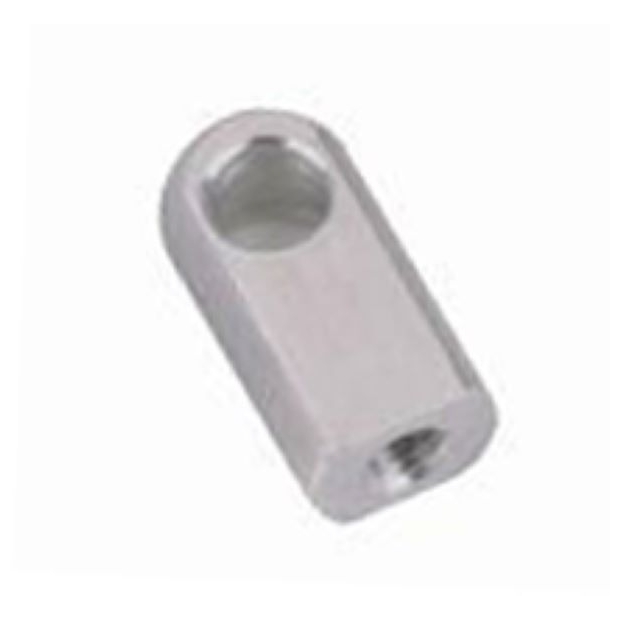

    L4

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L4
    8
    M6X1.0
    20
    ALUMINUM
    Vibratory Grinding
  • Read More

    L5

    Unit : mm















    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L5M608 ZINC
    8
    M6X1.0
    20
    12L14
    White Zinc Plated


    L5M610 ZINC
    10


    L5M808 ZINC
    8
    M8X1.25


    L5M810 ZINC
    10


    L5SM608 SUS303
    8
    M6X1.0
    SUS303
    Vibratory Grinding


    L5SM610 SUS303
    10


    L5SM808 SUS303
    8
    M8X1.25


    L5SM810 SUS303
    10
  • Read More

    L8S

    Unit : mm













    Model No.
    Hole Dia ( ∅A )
    Thread ( B )
    Hole Center To End ( C )
    Material
    Surface Treatment


    L8SM8   SUS303
    10
    M8X1.25
    25
    SUS303
    Vibratory Grinding


    L8SM10 SUS303
    M10X1.5
