Connecting Parts

Unit : mm















Model No.
Hole Dia ( ∅A )
Thread ( B )
Hole Center To End  ( C )
Material
Surface Treatment

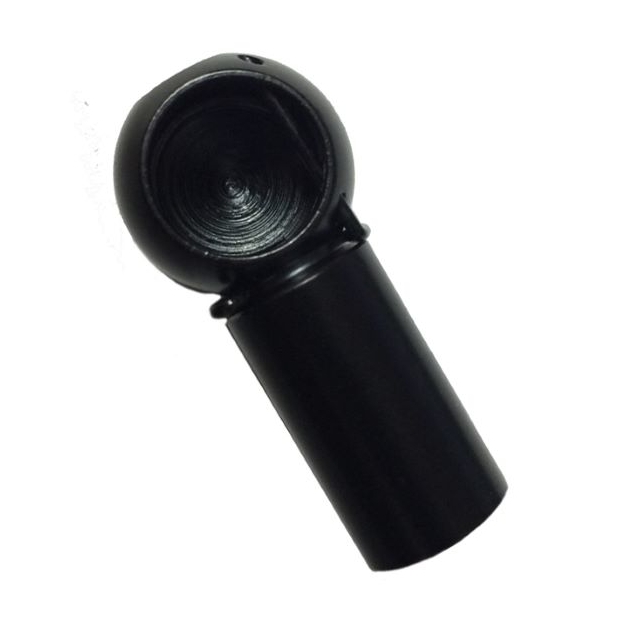

C2425M8   BLACK ZINC
16
M8X1.25
25
1015
BLACK ZINC Plated


C2430M8   BLACK ZINC
30


C2435M8   BLACK ZINC
35


C2430M10 BLACK ZINC
M10X1.5
30


C2435M10 BLACK ZINC
35

Unit : mm













Model No.
Hole Dia  ( ∅A )
Hole Center To End  ( B )
Material
Surface Treatment

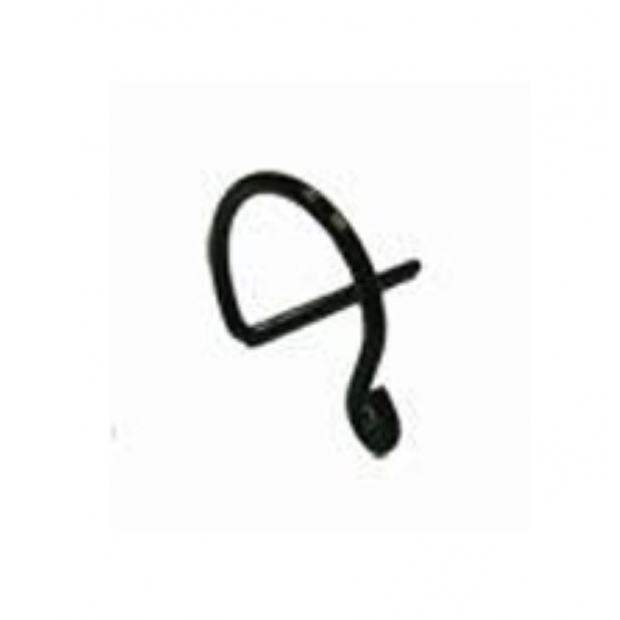

C9-01 BLACK
4.79
12.8
STELL
Black Zinc Plated


C9-01 STAINLESS
STAINLESS



C19-01 BLACK
5.8
15.5
STELL
Black Zinc Plated


C19-01 STAINLESS
STAINLESS







Unit : mm















Model No.
Hole Dia  ( ∅A )
Thread  ( B )
Hole Center To End  ( C )
Material
Surface Treatment

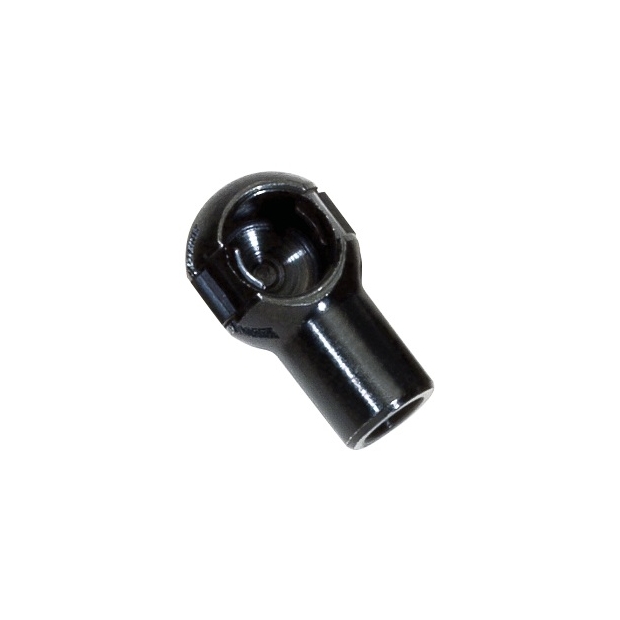

M920M6 BLACK ZINC
10
M6X1.0
20
12L14
Black Zinc


M925M6 BLACK ZINC
25


M930M6 BLACK ZINC
30


M920M8 BLACK ZINC
M8X1.25
20


M925M8 BLACK ZINC
25


M930M8 BLACK ZINC
30

Unit : mm













Model No.
Thread ( B )
Hole Center To End   ( C )
Material
Surface Treatment

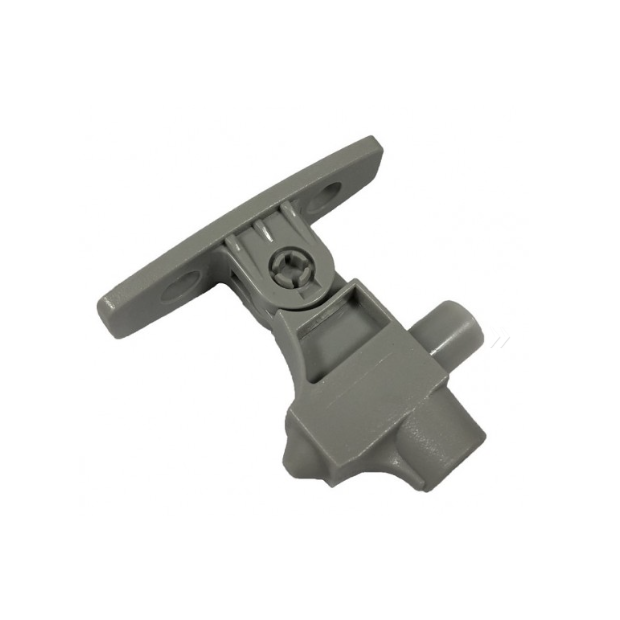

F1 BLACK
M6X1.0
41
NYLON
Black Plastic


F1 GRAY
Gray Plastic
