Furniture Gas Spring

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS











Model No.
Stroke (A)
Extended Length (B)
Force Range (N)

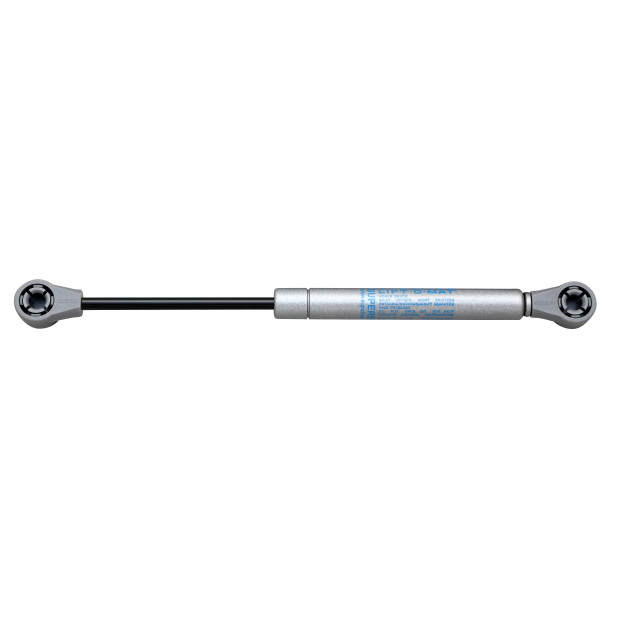

SBF1-251-SS2-50N
88
251
50N


SBF1-251-SS2-80N
88
251
80N


SBF1-251-SS2-100N
88
251
100N


SBF1-251-SS2-120N
88
251
120N


SBF1-251-SS2-150N
88
251
150N




STABILUS Furniture gas spring can lift and adjust application but no positioning function.
With certain Nitrogen (N2) filled inside to make reaction force when gas spring is compressed. Products in this line protect materials by preventing the full weight of the application from acting on the hinges and joints to make the component travel is altogether more harmonious and easier to control as well.
For extension damping, the gas spring is installed vertically with the piston rod oriented downward.

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS









Model No.
Stroke (A)
Extended Length (B)


SOSE-1-235-7012VG
74
235




Furniture Damper usually be assembled to cabinet or flap which ensure gentle lowering of the compartment door that protects the hinges.

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS











Model No.
Stroke (A)
Extended Length (B)
Force Range (N)

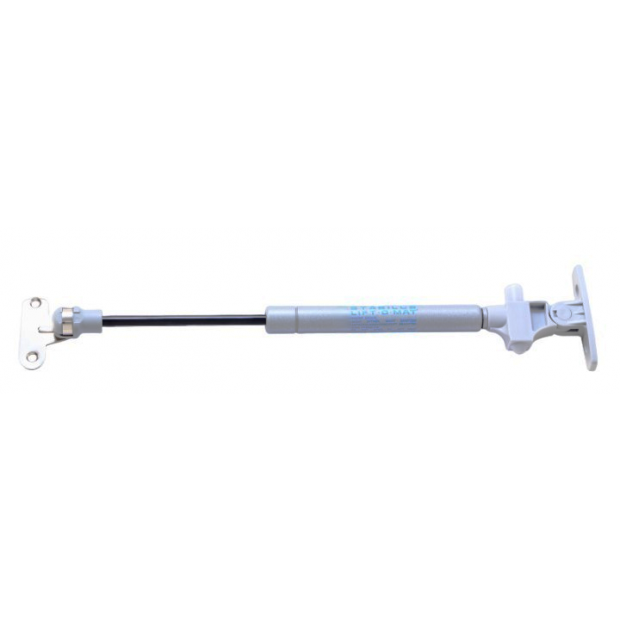

SBF1-267-B6F1-XXXN
85
267
50~300N




With their accurately adjusted extension force and application specific damping to open and close the flap friendly that protects the hinges thanks to their damping characteristics.
