Unit:mm
9.8 Newton(N)=1 Kg=2.2 LBS
Model No. | Stroke (A) | Extended Length (B) | FZ(N) | FD(N) | F1 (N) |
BOLT-956-M10D9-150N | 400 | 956 | 480 | 860 | 150N |
BOLT-1056-M10D9-150N | 450 | 1056 | 480 | 860 | 150N |

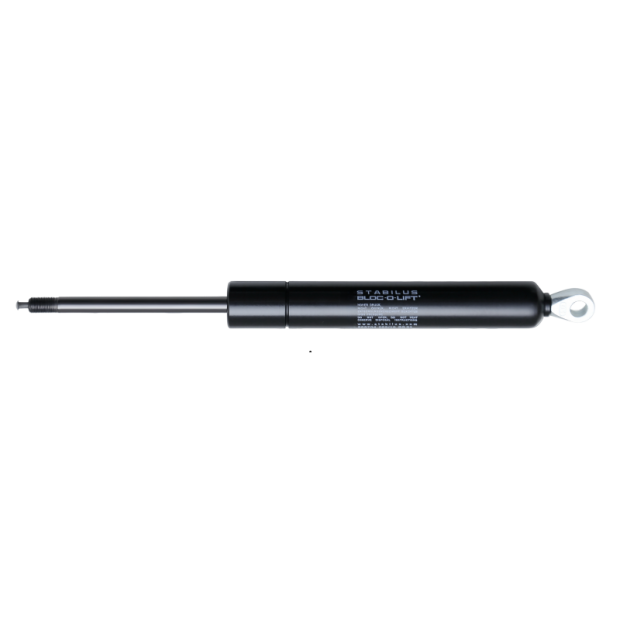

STABILUS BLOC-O-LIFT Gas spring (BOL-T).
BLOC-O-LIFT-T-easy adjustment of table heights. The spring characteristic curve of the BLOC-O-LIFT- T is very flat, which ensures essentially uniform force assistance through the entire stroke. This enables the table surface to be moved very easily no matter its weight without causing the table to lose its stability or load-bearing capacity.
This spring can be installed in any orientation. The lock can be released via hand lever or foot lever based on specification to adjust the table height easily and comfortably.
