Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) |
| BOLOBT-316-M8D9-XXXN | 100 | 316 | 100~400N |
| BOLOBT-416-M8D9-XXXN | 150 | 416 | 100~400N |
| BOLOBT-516-M8D9-XXXN | 200 | 516 | 100~400N |
| BOLOBT-616-M8D9-XXXN | 250 | 616 | 100~400N |
| BOLOBT-716-M8D9-XXXN | 300 | 716 | 100~400N |
| BOLOBT-816-M8D9-XXXN | 350 | 816 | 100~400N |
| BOLOBT-916-M8D9-XXXN | 400 | 916 | 100~400N |

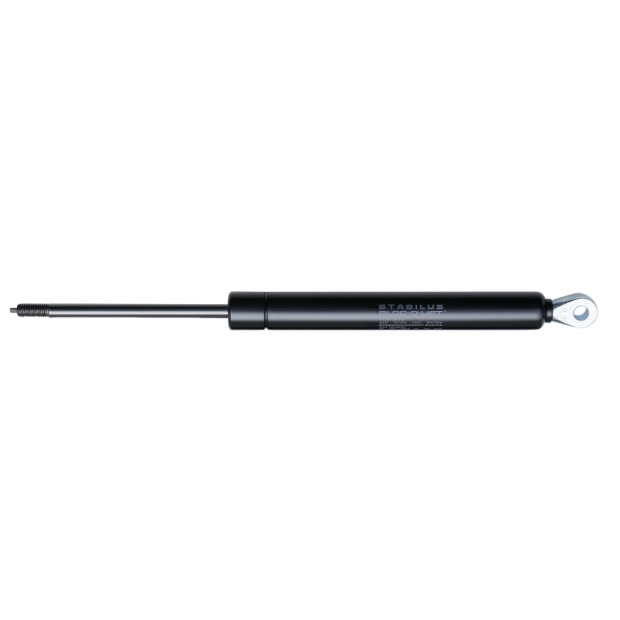

STABILUS BLOC-O-LIFT Gas spring (OBT).
BLOC-O-LIFT OBT Gas Spring can be easily blocked in any position for convenient upward motion of applications, such as tabletops, without the need to actuate a release. Just push slightly to lift or adjust tables in any emergency. Release is actuated when lowing the tables. Preferably it is installed vertically.
