Unit : mm
| Model No. | Hole Dia ( ∅A ) | Thread ( B ) | Hole Center To End ( C ) | Material | Surface Treatment |
| D7 | 6 | M6X1.0 | 13 | Zinc Alloy | White Zinc Plated |
| D7A | 8 | ||||
| D7B | 10 |
Connecting Parts

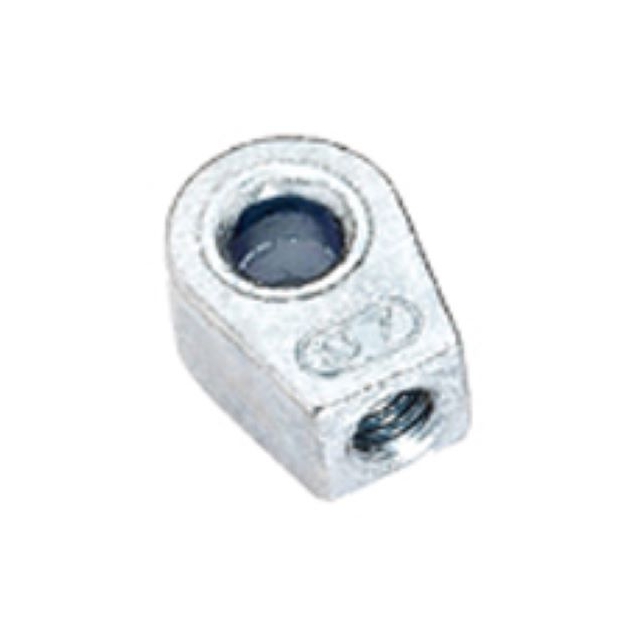

D7 SERIES
D7 SERIES
DETAIL
Unit : mm
