Brackets

  1. Brackets
one two four
  • Read More

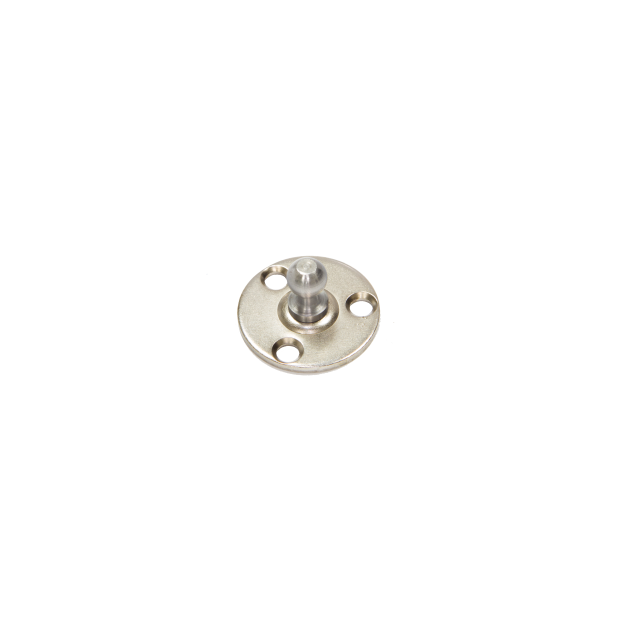

    BKT-09C(Ball 8mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-09C NICKEL
    8
    2
    12L14
    P-O
    Nickel Plated


    BKTS-09C SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

    BKT-10-I(Ball 10mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-10-I ZINC
    10
    2
    12L14
    P-O
    White Zinc Plated


    BKT-10-I BLACK COATED
    12L14
    P-O
    Black Coated

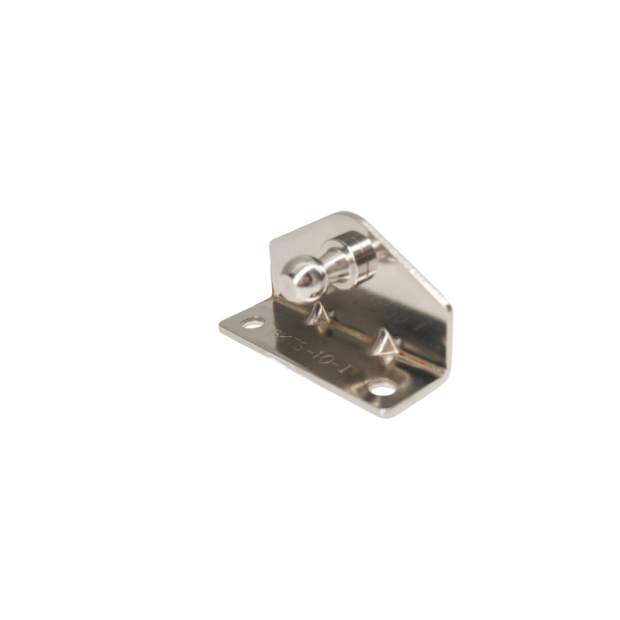

    BKTS-10-I SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

    BKT-10-O(Ball 10mm)

    Unit：mm
















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-10-O ZINC
    10
    2
    12L14
    P-O
    White Zinc Plated


    BKT-10-O BLACK COATED
    12L14
    P-O
    Black Coated

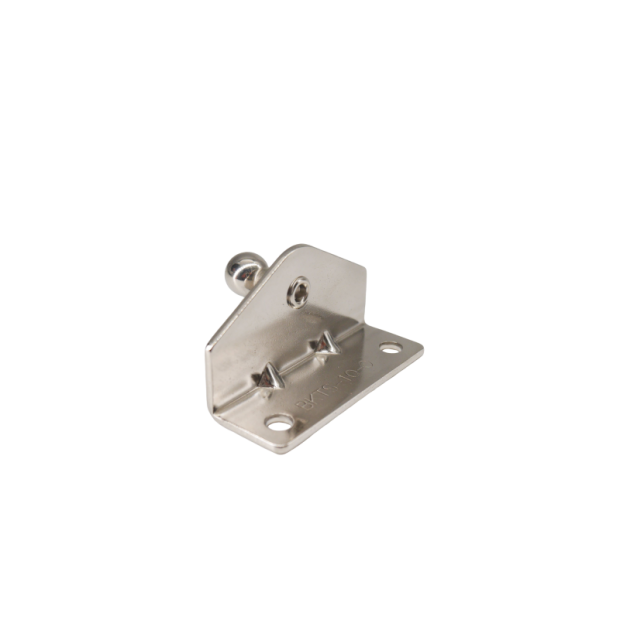

    BKTS-10-O SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

    BKT-11(Bolt 8mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment
    Remark


    BKT-11 ZINC
    8
    3
    12L14
    P-O
    White Zinc Plated
    E-ring(6mm)


    BKT-11 BLACK COATED
    12L14
    P-O
    Black Coated

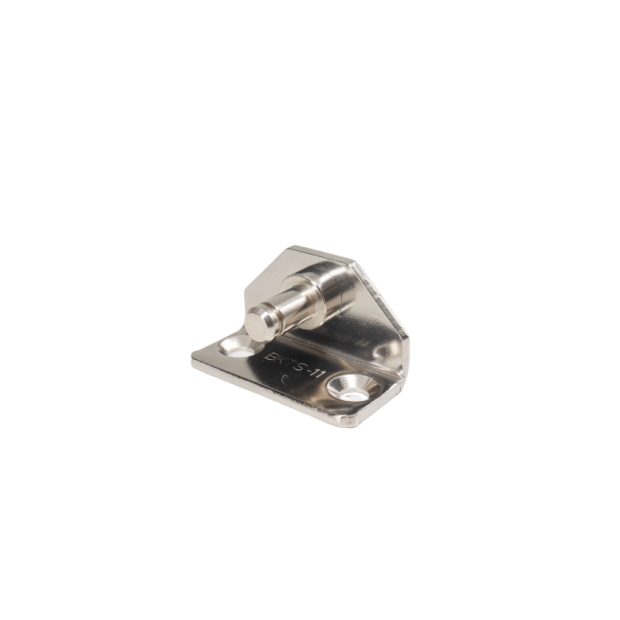

    BKTS-11 SUS304
    SUS303
    SUS304
    Vibratory Grinding


    BKT-116 BLACK COATED
    6
    12L14
    P-O
    Black Coated
    E-ring(4mm)
  • Read More

    BKT-12(Bolt 8mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment
    Remark


    BKT-12 ZINC
    8
    3
    12L14
    P-O
    White Zinc Plated
    E-ring(6mm)


    BKT-12 BLACK COATED
    12L14
    P-O
    Black Coated

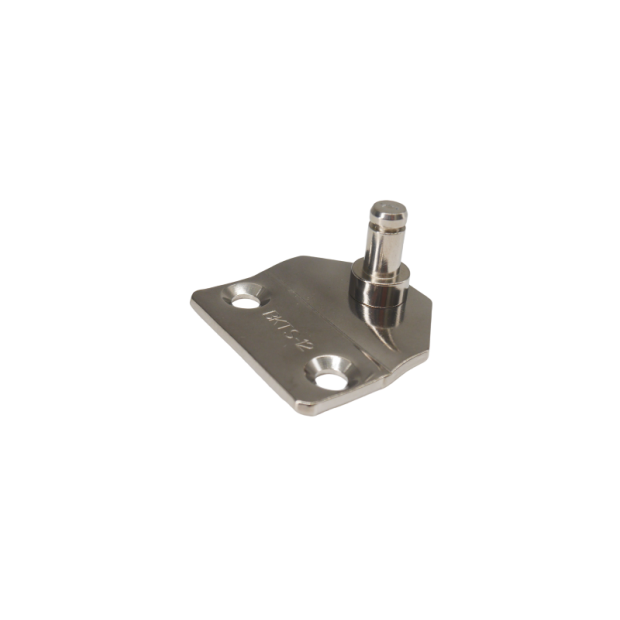

    BKTS-12 SUS304
    SUS303
    SUS304
    Vibratory Grinding


    BKT-126 BLACK COATED
    6
    12L14
    P-O
    Black Coated
    E-ring(4mm)
  • Read More

    BKT-11A(Ball 10mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-11A BLACK COATED
    10
    3
    12L14
    P-O
    Black Coated

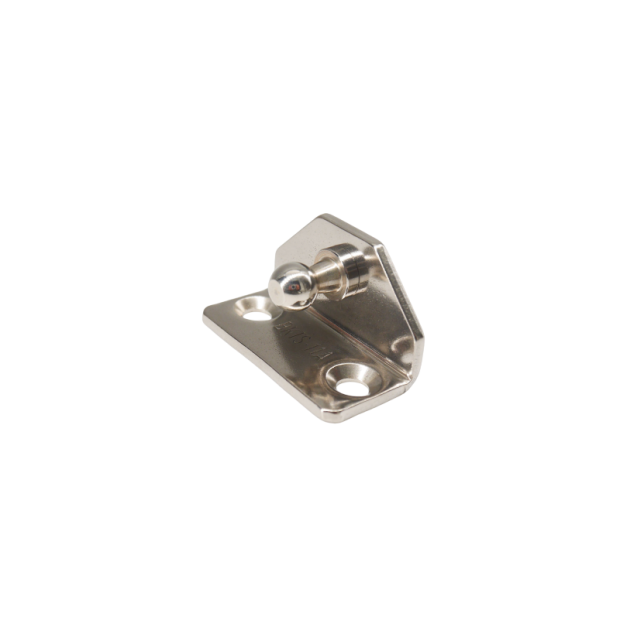

    BKTS-11A SUS304
    SUS303
    SUS304
    Vibratory Grinding





  • Read More

    BKT-12A(Ball 10mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-12A BLACK COATED
    10
    3
    12L14
    P-O
    Black Coated

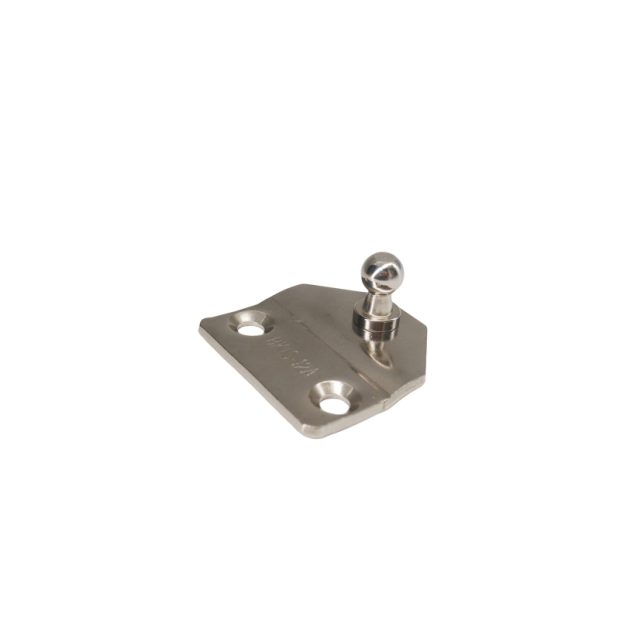

    BKTS-12A SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

    BKT-B11(Bolt 8mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-B11 BLACK COATED
    8
    3
    12L14
    P-O
    Black Coated

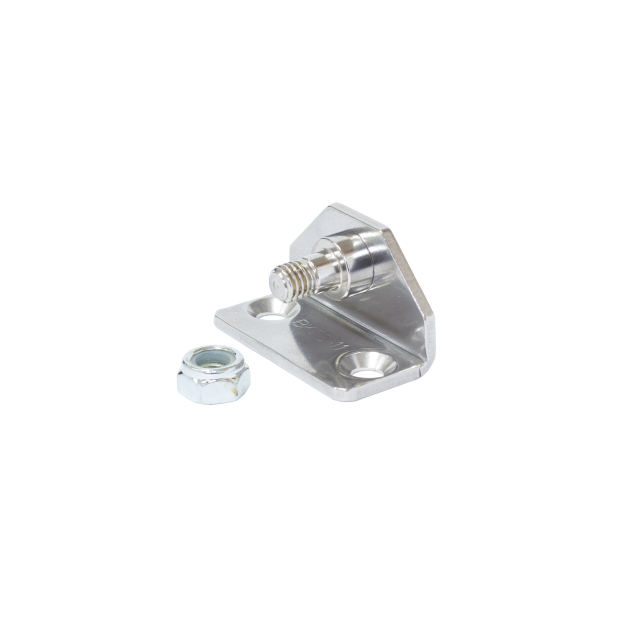

    BKTS-B11 SUS304
    SUS3103
    SUS304
    Vibratory Grinding
  • Read More

    BKT-B12(Bolt 8mm)

    Unit：mm
















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-B12 BLACK COATED
    8
    3
    12L14
    P-O
    Black Coated

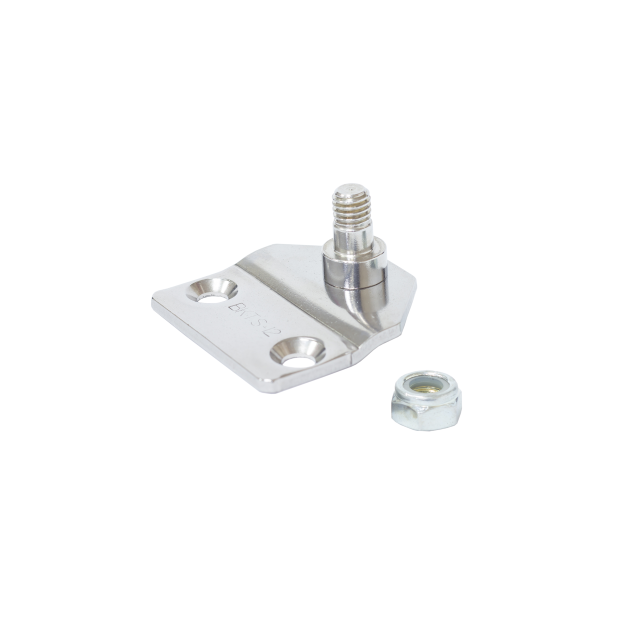

    BKTS-B12 SUS304
    SUS3103
    SUS304
    Vibratory Grinding
  • Read More

    BKT-13(Bolt 8mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-13 ZINC
    8
    2.5
    12L14
    P-O
    White Zinc Plated

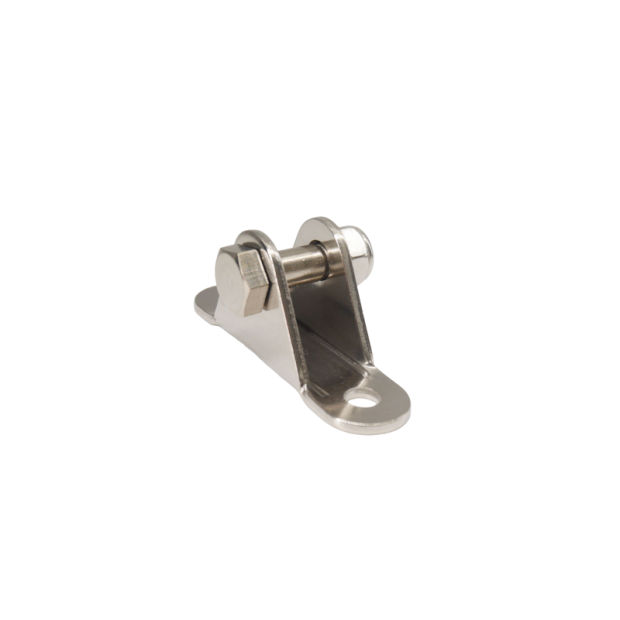

    BKTS-13 SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

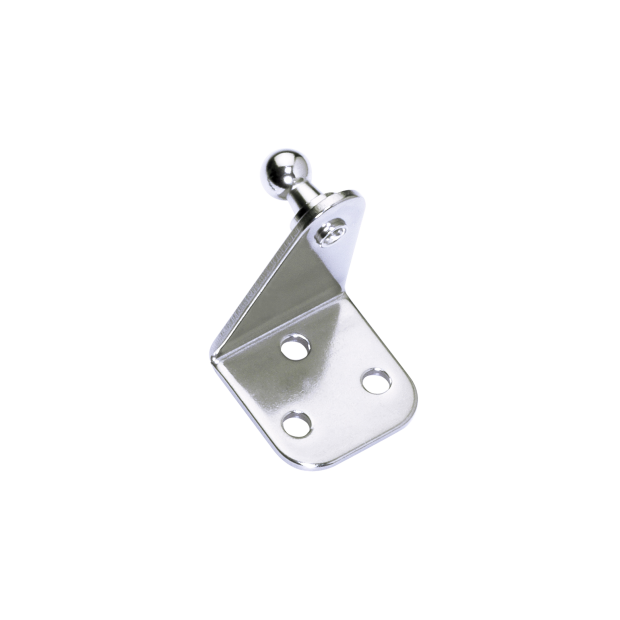

    BKT-14-O(Ball 10mm)

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-14-O BLACK COATED
    10
    2.5
    12L14
    P-O
    Black Coated


    BKTS-14-O SUS304
    SUS303
    SUS304
    Vibratory Grinding
  • Read More

    BKT-FDP

    Unit：mm















    Model No.
    Bolt or Ball ( ∅A )
    Thickness ( B )
    Bolt or Ball Material
    Plate Material
    Surface Treatment


    BKT-FDP NICKEL
    (BKT-06B + BKT-08B)
    10
    2
    12L14
    P-O
    Nickel Plated
