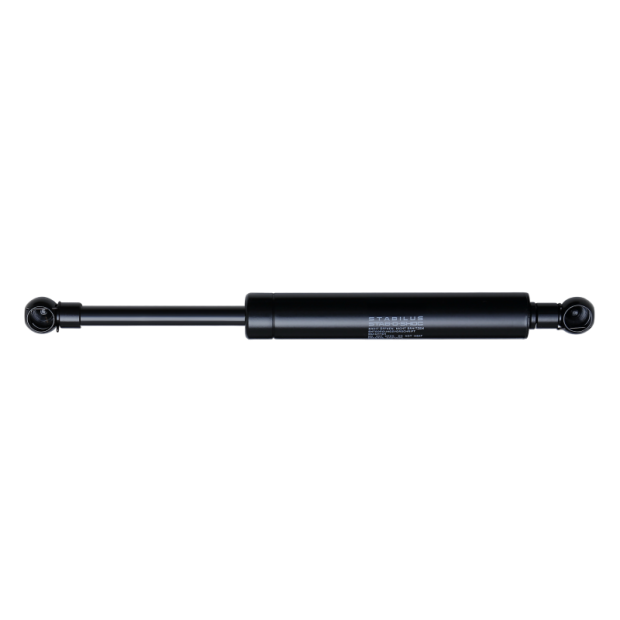

Extension Damping-STABILUS STAB-O-SHOC
Specification:
Rod Dia. : 10mm / Tube Dia. : 24mm
Material: carbon steel / Operating temperature: -30℃~80℃
Rod Surface treatment: Hard Chrome Plated or Nitrided Black / Tube Surface treatment: Black Coated
Length unit: mm / Force unit: 1 kg=9.8(N) Newton=2.2 lbs
/
DETAIL

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
Model No. Product Description 1)
Stroke(A)		 Product Description 2)
Stroke(A*)		 Extended Length (B) Product Description(3)(4)
Tension Force FZ(N)		 Product Description(3)(5)
Compression FD(N)
HD24E-271-C1920-650N 80 80 271 650 <100
HD24E-271-C1920-1500N 1500 <100
HD24E-271-C1920-5000N 5000 <100
HD24E-360-C1920-650N 120 120 360 650 <100
HD24E-360-C1920-1500N 1500 <100
HD24E-360-C1920-5000N 5000 <100
HD24E-538-C1920-650N 200 200 538 650 <100
HD24E-538-C1920-1500N 1500 <100
HD24E-538-C1920-5000N 5000 <100

STABILUS standard HD24E Oil Hydraulic Dampers is non-Nitrogen oil hydraulic damper which has an increased compressed damper force extensions the piston rod. Preferably it is installed vertically. The oil hydraulic damper is available in various applications.

Product Geometric Data:
   1)hydraulic stroke
   2)mechanical Stroke
   3)test speed 100mm/s
   4)Piston rod down, piston flow in oil=hydraulic stoke, A
   5) Piston rod up, maximum possible stroke in oil and air chamber=mechanical stoke, A*
   FZ：Traction Damping Force
   FD：Compression Damping Force
