Compression Damping

  1. STAB-O-SHOC
  2. Compression Damping
1024-C1920(Hole 13mm)

1024-C1920(Hole 13mm)

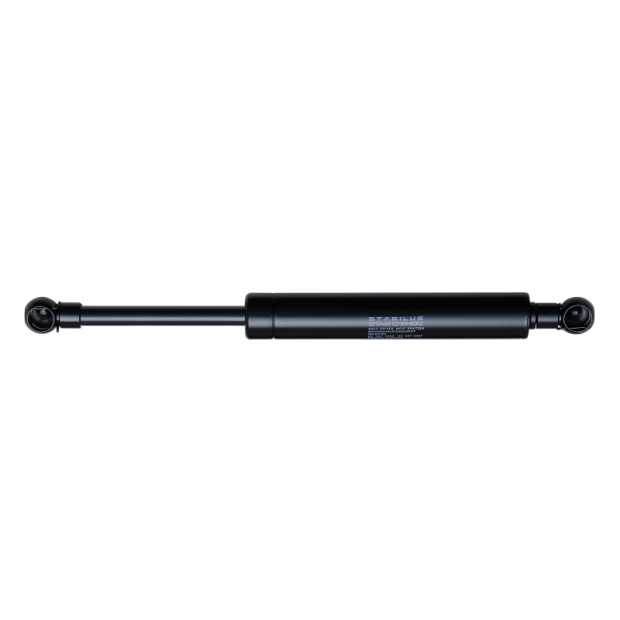

Compression Damping-STABILUS STAB-O-SHOC
Specification:
Rod Dia. : 10mm / Tube Dia. : 24mm
Material: carbon steel / Operating temperature: -30℃~80℃
Rod Surface treatment: Hard Chrome Plated or Nitrided Black / Tube Surface treatment: Black Coated
Length unit: mm / Force unit: 1 kg=9.8(N) Newton=2.2 lbs
/
DETAIL

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
Model No. Product Description 1)
Stroke(A)		 Product Description 2)
Stroke(A*)		 Extended Length (B) Product Description(3)(4)
Tension Force FZ(N)		 Product Description(3)(5)
Compression FD(N)
HD24C-348-C1920-650N 80 130 348 <100 650
  HD24C-348-C1920-1500N <100 1500
  HD24C-348-C1920-3000N <100 3000
HD24C-464-C1920-650N 120 188 464 <100 650
  HD24C-464-C1920-1500N <100 1500
  HD24C-464-C1920-3000N <100 3000
HD24C-698-C1920-650N 200 305 698 <100 650
  HD24C-698-C1920-1500N <100 1500
  HD24C-698-C1920-3000N <100 3000

STABILUS standard HD24C Oil Hydraulic Dampers is non-Nitrogen oil hydraulic damper which has an increased compressed damper force extensions the piston rod. Preferably it is installed vertically. The oil hydraulic damper is available in various applications.
Product Geometric Data:
   1)hydraulic stroke
   2)mechanical Stroke
   3)test speed 100mm/s
   4)Piston rod down, piston flow in oil=hydraulic stoke, A
   5) Piston rod up, maximum possible stroke in oil and air chamber=mechanical stoke, A*
   FZ：Traction Damping Force
   FD：Compression Damping Force
