Unit：mm
| Model No. | Bolt or Ball ( ∅A ) | Thickness ( B ) | Bolt or Ball Material | Plate Material | Surface Treatment |
| BKT-01 ZINC | 10 | 2 | 12L14 | P-O | White Zinc Plated |
| BKT-01 BLACK COATED | 12L14 | P-O | Black Coated | ||

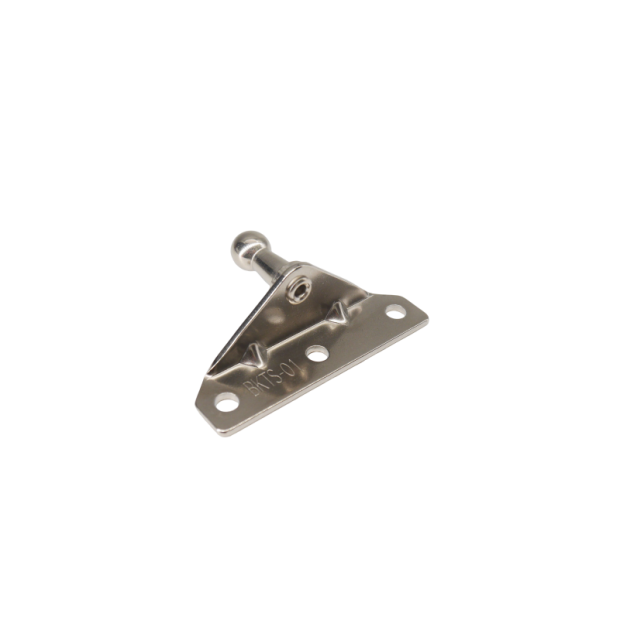

| BKTS-01 SUS304 | SUS303 | SUS304 | Vibratory Grinding |
Brackets
BKT-01(Ball 10mm)
BKT-01(Ball 10mm)
DETAIL
Unit：mm
