Unit : mm

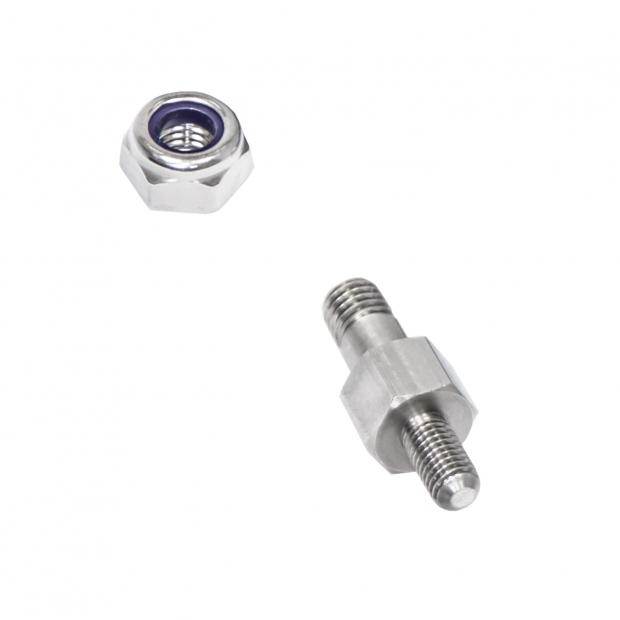

suitable for thick 10~12mm and dia. 8mm gas spring connection
| Model No. | BOLT Dia( A ) | B | C | D | Thread ( E ) | Material | Surface Treatment |
| SWS6412A-L1 | ∅6 | 28.6 | 13 | 6.6 | M6X1.0 | SUS303 | Vibratory Grinding |
| SWS6412B | ∅8 | 29.5 | 13 | 5.5 | M8X1.25 | ||
| SWS6412C | 34.5 | 13 | 10.5 |
