Unit : mm
suitable for thick 10~12mm and dia. 8mm gas spring connection
| Model No. | BOLT Dia( A ) | B | C | D | E | F | Thread ( G ) | Material | Surface Treatment |
| SW6412 ZINC | ∅6 | 10 | 13 | 7 | 10 | 13 | M6X1.0 | 12L14 | White Zinc Plated |

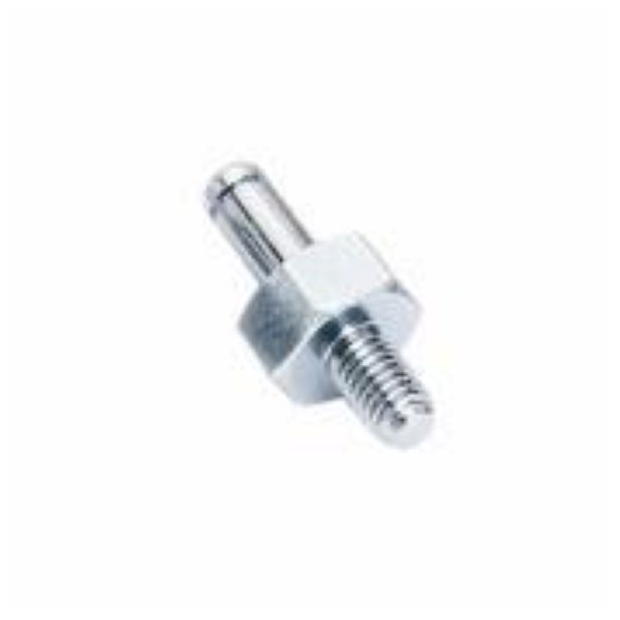

Ball Studs
SW6412
SW6412
DETAIL
Unit : mm
suitable for thick 10~12mm and dia. 8mm gas spring connection
