Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) |
| DD1-195-B6-XXXN | 50 | 195 | 55~300 |
| DD1-235-B6-XXXN | 70 | 235 | 50~300 |
| DD1-250-B6-XXXN | 80 | 250 | 50~300 |
| DD1-275-B6-XXXN | 90 | 275 | 50~300 |
| DD1-317-B6-XXXN | 110 | 317 | 50~300 |
| DD1-375-B6-XXXN | 140 | 375 | 50~300 |

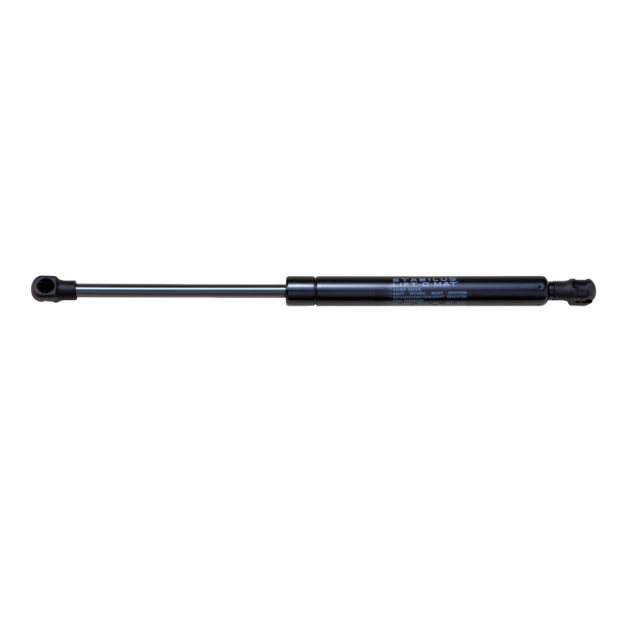

STABILUS Dynamic Gas Spring can lift and adjust application but no positioning function.
With certain Nitrogen (N2) filled inside to make reaction force when gas spring is compressed. Products in this line protect materials by preventing the full weight not with the help of hydraulic oil, but rather with the “groove-in-the-tube” technology developed by Stabilus that it enables damping specifications to be adapted to both directions to protect operators when gas spring full extents which is wildly applied in global automotive industry.
