Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) |
| SB5-532-U8-XXXXN | 150 | 532 | 600~5000N |
| SB5-632-U8-XXXXN | 200 | 632 | 600~5000N |
| SB5-732-U8-XXXXN | 250 | 732 | 600~5000N |
| SB5-832-U8-XXXXN | 300 | 832 | 600~5000N |
| SB5-932-U8-XXXXN | 350 | 932 | 600~5000N |
| SB5-1032-U8-XXXXN | 400 | 1032 | 600~5000N |
| SB5-1232-U8-XXXXN | 500 | 1232 | 600~5000N |

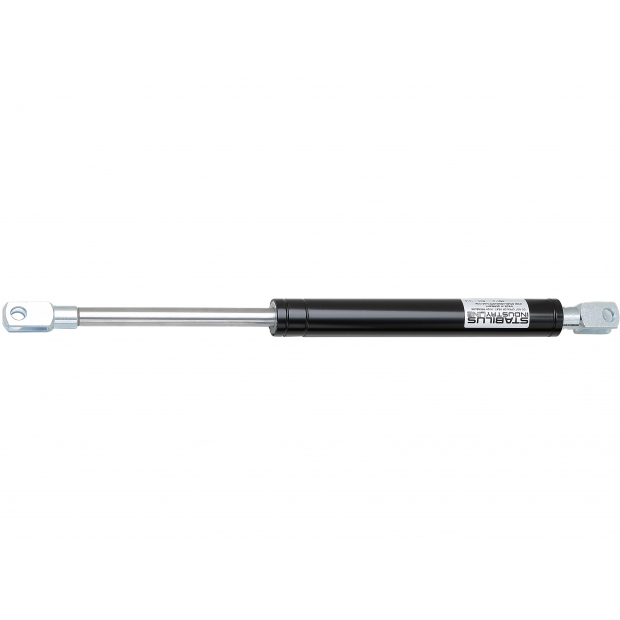

STABILUS LIFT-O-MAT Free Type gas spring can lift and adjust application but no positioning function.
With certain Nitrogen (N2) & oil filled inside to make reaction force when gas spring is compressed. Products in this line protect materials by preventing the full weight of the application from acting on the hinges and joints to make the component travel is altogether more harmonious and easier to control as well.
For extension damping, the gas spring is installed vertically with the piston rod oriented downward.
