Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) |
| PTL-100-C920M6-XXXN | 100 | 335 | 100~400N |
| PTL-150-C920M6-XXXN | 150 | 435 | 100~400N |
| PTL-200-C920M6-XXXN | 200 | 535 | 100~400N |
| PTL-250-C920M6-XXXN | 250 | 635 | 100~400N |
| PTL-300-C920M6-XXXN | 300 | 735 | 100~400N |
| PTL-350-C920M6-XXXN | 350 | 835 | 100~400N |
| PTL-400-C920M6-XXXN | 400 | 935 | 100~400N |

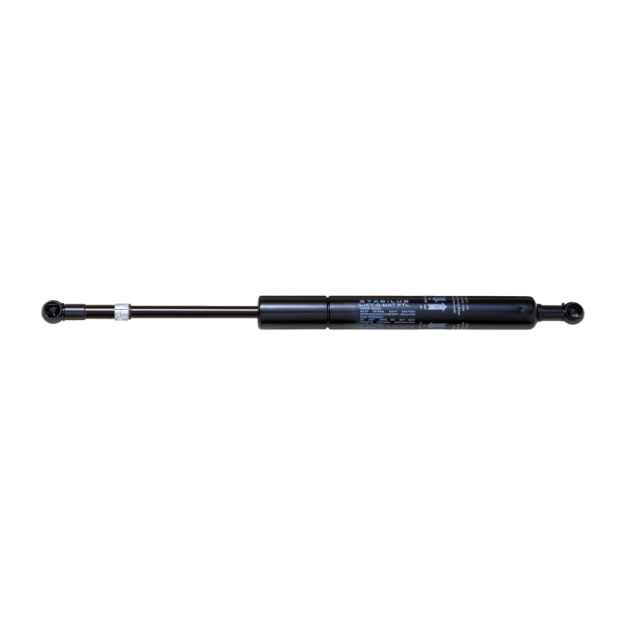

In addition to force assistance, LIFT-O-MAT PTL is a hydraulically cushioned gas spring that can also be mechanically locked in the compressed position- no need to install a separate BLOC-O-LIFT element. This gas spring features in user-friendly, convenient operation and has already proven itself in applications in functional furniture and innovative designer.
